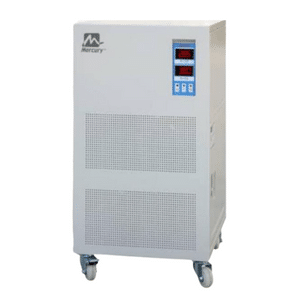

Description Mercury 10kVA 3-Phase Servo Stabilizer Mercury 10kVA 3-Phase Servo Stabilizer 277V-433V designed to automatically stabilize voltage output current using auto-transformer, servo motor and an automatic control circuit. Highly adaptable to all kinds of non-linear loads such as capacitive and inductive loads. Low, High, Fluctuating NEPA Voltage? When NEPA voltage is unstable, the Mercury Servo Stabilizer stands between NEPA and your precious electrical appliances stabilizing and protecting: Air Conditioners, Servers, Desktop Computers, Elevators, Lifts, Medical Equipment, Fridges, Freezers etc. Key Features Phase: Three Phase N GNaD Display Model: LED Ring transformer structure, small footprint, minimum magnetic leakage, low noise Multi-layer structure carbon brush with long service time and convenient daily maintenance Voltage Protection – High / Low Voltage, High Temperature Protection Soft Start Protection – Safeguards your expensive equipment Ideal for heavy-duty equipment Specifications Capacity 10 KVA AC INPUT Voltage range 277 V ~ 433 V Frequency range 50/60 Hz Phase Three-phase N G AC OUTPUT Voltage: 380 V / 400 V / 415 V Voltage: regulation accuracy ± 3% Waveform: Sinusoidal Efficiency: 96% Power factor: 0.8 Distortion: No additional waveform distortion Response time: ± 10% varies< 1 s Over-voltage protection: Output phase voltage 433 V ± 5 V Under-voltage: Output phase voltage 316 V ± 5 V Other protections: Start-up delay -mechanical failure -over-current -short-circuit -phase order (three-phase) -lack-phase (three-phase) -over temperature OTHERS Dimensions (W x D x H) (mm) : 240 x 410 x 370 Packaged dimensions W x D x H) (mm) 325 x 485 x 430 Net weight (kg) 27.3 Gross weight (kg) 28.5
