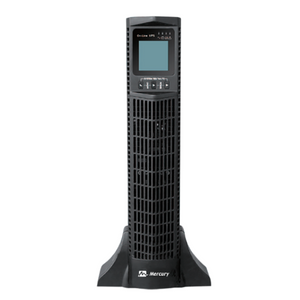

Mercury 3kva Online UPS Envy RT

Description Mercury Envy 3kva Online UPS RT FEATURES: Cold start ECO Mode Matching battery pack Communication software Power shedding function Low input current distortion Emergency power off (EPO) Fan speed control and monitoring Versatile communication interfaces Estimated remaining time on the LCD True online double conversion with DSP control Easy maintenance design hot swappable battery pack Extended runtime with up to 4 battery Modules (EBPs) per UPS APPLICATIONS: Small Networking, High End Servers and Critical IT Equipment MODEL 3KVA Capacity 3KVA/2700W INPUT Nominal Voltage 200VAC / 208VAC / 220VAC / 230VAC / 240VAC Voltage Range 110VAC-300VAC Frequency 445Hz-65Hz (Auto detect) Power Factor ≥0.99 OUTPUT Output Voltage 200VAC / 208VAC / 220VAC / 230VAC / 240VAC Voltage Regulation ±1% Power Factor 0.9 Frequency Synchronized range: 45Hz-55Hz, Battery mode: 50Hz/60Hz±0.1Hz Crest Factor 3:1 (max) Waveform Pure sine wave BATTERY Battery Type 12V/9AH x 1 Battery Number 2 3 4 6 Backup Time Estimated remaining time displayed on the LCD Charging Time 4 hours to recover to 90% capacity DC Voltage 27.4VDC±1% 41.1VDC±1% 54.7VDC±1% 82.1VDC±1% SYSTEM FEATURES Transfer Time 4ms Audible Alarm Battery mode: Sounding every 4 sec / Battery Low: Sounding every 1 sec / Overload: Sounding twice every second / Fault: Continuous sounding Status LED and LCD Display Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators Communication Interface SNMP (Optional) ENVIRONMENTAL Humidity 20-90% Relative Humidity 0-40˚C (Non-condensing) Noise Level Less than <50dB PHYSICAL Dimension W x D x H (mm) 430 x 440 x 86.5 552 x 440 x 86.5 710 x 440 x 86.5 Net Weight (kgs) 13.9 15.6 20.1 28.1
